Automatic Carton Sealing Machine

Products Bg - SRIPL

Automatic Carton Sealing Machine

5FAM- HS, 5FAM, 5FRM, Carton Erector - CF-40T

Fully Automatic High Throughput Carton Sealing Machine – 5FAM-HS

Features and Advantages

5FAM-HS is the latest in the range of carton sealing machines from SRIPL the leader in industrial packaging solutions committed to improving your productivity and profitability. 5FAM-HS machines are designed for reliable, high speed BOPP tape application.

  • Automatic four flap closer
  • High speed – 35+ Cartons per minute (depends on carton size and feeding efficiency)
  • “Auto off” facility for power saving
  • Total and batch counter for packing volumes monitoring
  • “No tape”indication alert throughtower lamp and buzzer
  • Powered up/down of top drive set for quick carton size changeover
  • Electrically interlocked safety guards
  • PLC basedlogic controller
  • Front stopper for carton regulation

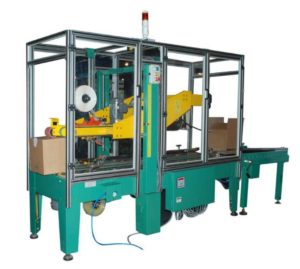

Automatic Carton Sealing Machine - 5FAM-HS - SRIPL

Fully Automatic High Throughput Carton Sealing Machine - Technical Specifications

5FAM-HS

Automatic Carton Sealing Machine - 5FAM-HS Specifications - SRIPL

Automatic Case Sealer with Four Flap closure – 5FAM

The 5FAM is a fully automatic carton sealing machine with a four flap closer which seals the carton with BOPP Tape on both top and bottom simultaneously. Easy to operate, ensures perfect sealing even of tall and heavy cartons.

Features and Advantages

  • Can be easily integrated with high speed batch production line-Increased productivity
  • Four Flap Closer eliminates manpower for flap closing
  • Regulatory cum centering conveyor to regulate the flow of cartons & regulate them on horizontal axis prior to taping
  • Twin mast column for greater stability during
  • Separate Top & Bottom Drive for perfect taping
  • Uniform & controlled pressure during taping
  • Twin Flap Squeeze Rollers provides additional squeezing for perfect top alignment
  • Belt speed of 18 m/minute as per international norms
  • Inbuilt Tool Box- Ease of maintenance

User friendly

  • Quick, simple & tool free adjustment for varying carton sizes
  • Self-centering side guides for accurate centering Positive top and bottom drive to ensure sealing of tall and heavy cartons, in addition to regular cartons Telescopic legs for height adjustment
  • Works with high tack tapes too
  • Easy top belts replacements

Safety

  • Emergency Stop Pushbutton
  • Belt Guards for operator safety
  • Optional MS(wire mesh) /Polycarbonate Safety Guards for Operational safety
  • Optional Motorized up/down of top drive movement for ease of operation
  • Optional No/ Low Tape indicator reduces changeover downtime
Automatic Carton Sealing Machine - 5FAM - SRIPL

Automatic Case Sealer with Four Flap closure - Technical Specifications

5FAM

Automatic Carton Sealing Machine - 5FAM Specifications - SRIPL

Fully Automatic Random Case Sealer with Four Flap Closure – 5FRM

Features and Advantages

  • Automatic sealing for random size carton
  • Machine automatically adjust itself to varying carton sizes
  • Independent controlled top and side drives ensures smooth flow of cartons
  • Ideal for integrating with different production lines
  • Auto on/off features enables power saving during ideal time
  • Twin mast column for greater stability during operation
  • Pneumatically controlled top drive and side guides align with the carton width and height automatically
  • Uniform and controlled pressure during tapping
  • Belt speed of 18 m/minute as per international norms
  • Optional MS(Wiremesh) or polycarbonate safety guards for operator safety

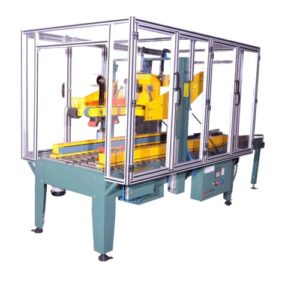

Automatic Carton Sealing Machine - 5FRM - SRIPL

Fully Automatic Random Case Sealer with Four Flap Closure - Technical Specifications

5FRM

Automatic Carton Sealing Machine - 5FRM Specifications - SRIPL

Fully Automatic Little David CF 40T Case Erector/Case Former

The Little David® CF-40T is a large capacity automatic case former designed for easy size changeover and maximum user friendliness.The CF-40T’s chain and lug side drive automatically squares the case and compensates for poor tolerances in corrugated dimensions.The chain driven powered hopper accepts up to 150 RSC or HSC cases. The CF-40T is easily integrated into most production areas,and portable with optional casters.

Features for All Case Formers:

  • Calibrated scales
  • Powered hopper
  • Pneumatic tuckers
  • Allen Bradley® PLC
  • Quick changeover
  • Heavy duty steel construction
  • Built in the U.S.A
  • Positive drive system

Available Options:

  • Automatic central lube (CF-30T and CF-40T only)
  • Spare parts kit
  • Special electrics
  • Custom color
  • Low hopper warning
  • Low tape warning
  • Box jam warning
  • Custom height adjustments
  • Stainless steel
  • Available in CE, NEMA
Fully Automatic Little David CF 40T Case Erector - SRIPL

Fully Automatic Little David Case Erector - Technical Specifications

CF 40T

Fully Automatic Little David CF 40T Case Erector Specifications - SRIPL
